Filter Digital – GNU Radio

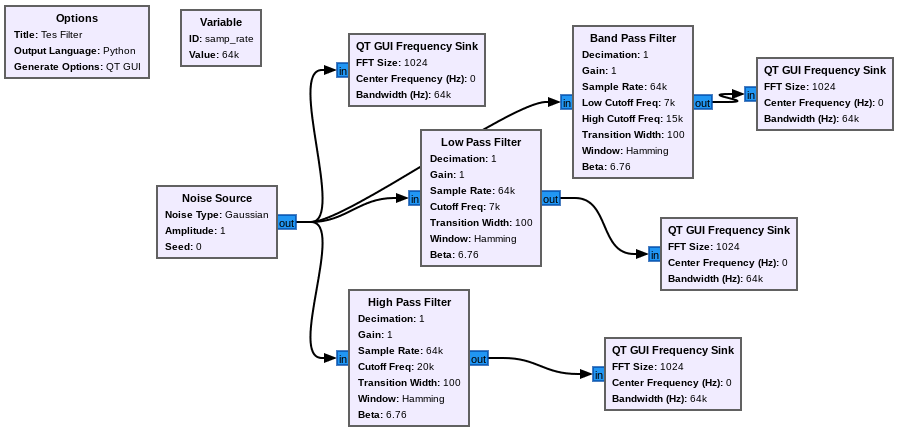

Membuat filter digital di GNU Radio semudah melempar kaos oblong di bak cucian. Kalaupun meleset, ya tinggal jalan ambil trus lempar lagi :). Asal comot saja dan klak-klik muncul hasilnya hehe. Sebenarnya, urusan matematika untuk membuat filter digital ini rumit. Seruwet kisah cinta yang gak jelas tempo lalu. GNU Radio membuatnya sederhana bagi petani miskin ini.

Karena output GNU Radio berupa script Python atau C++, jika ingin menjalankan, tinggal eksekusi saja tanpa “perlu” GNU Radio. Blok diagram seperti di bawah. Anda dapat bereksperimen dengan mengubah nilai parameter yang ada. Ubah saja sample rate jadi 500MHz (tanpa throttle) dan CPU PC Anda akan kerja rodi hehe. Intinya, ubah apa yang bisa diubah dan lihat hasilnya seperti apa.

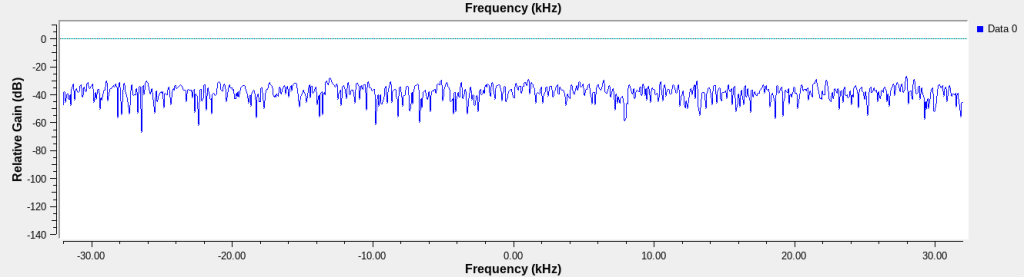

Sebagai aktor utama adalah sumber noise Gaussian. Noise ini merata disemua rentang frekuensi. Fungsi filter akan meneruskan atau mem-blok noise ini. Anggap saja noise ini sebagai “signal” atau gangguan yang diinginkan. 🙂 Karena sample rate 64KHz, maka bermain filter di bawah 32KHz akan aman. Yach ini hanya contoh sederhana saja.

FFT (Fast Fourier Transform) Frequency Sink akan memudahkan dalam pengamatan unjuk kerja filter. Signal/noise diamati dalam lingkup amplitudo vs frekuensi. Osiloskop standar hanya bermain di arena amplitudo vs waktu.

Noise merata dikisaran -40dB. Yach ini noise dengan gain=1 saja. Untuk rentang noise frekuensi negatif akan merupakan mirror sisi positif. Supaya tidak binggung, perhatikan nilai positif frekuensi saja dalam melihat respon filter.

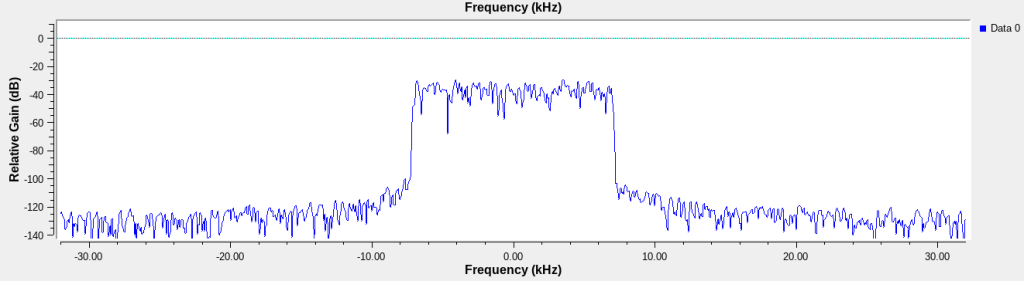

LPF (Low Pass Filter). Perhatikan rentang frekuensi nol sampai 30KHz. Redaman dimulai di frekuensi sekitar 7KHz sampai 30 KHz. Setelah 7KHz, nilai noise tinggal -120dB saja.

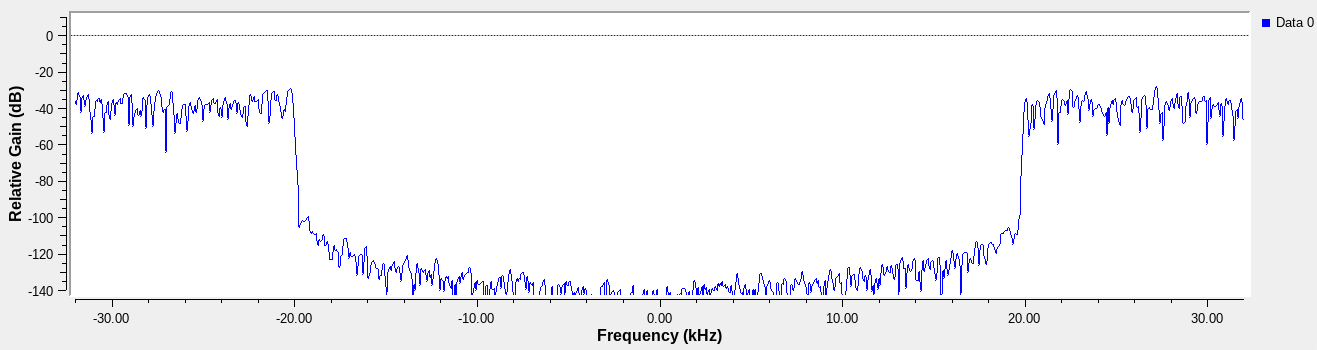

HPF(High Pass Filter). Pada grafik bisa dilihat saat frekuensi mulai 20KHz maka noise diteruskan. Sebelum 20KHz maka noise sekitar -120dB. Filter HPF berfungsi dengan baik (meski asal comot dan isi nilai suka-suka hehe).

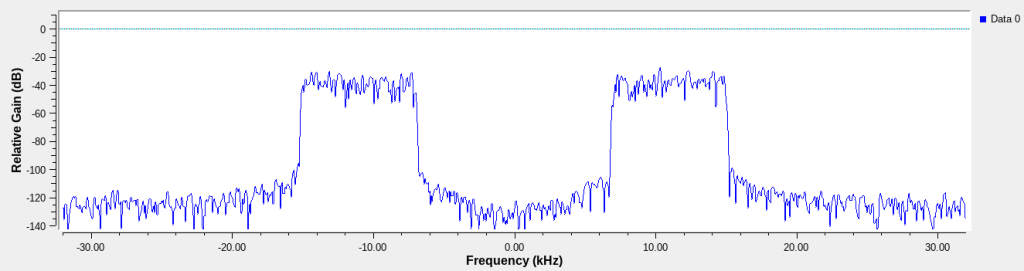

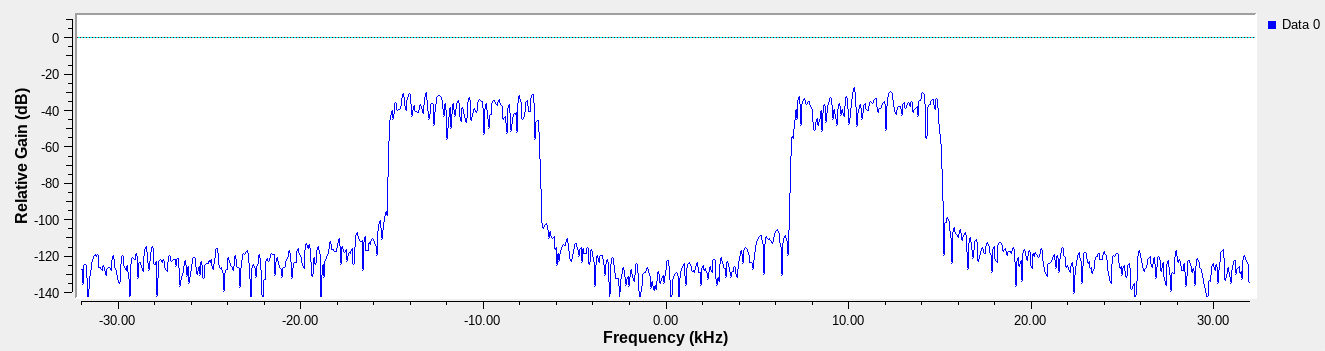

BPF (Band Pass Filter). Perhatikan rentang 7KHz-15KHz noise diteruskan (sekitar -40dB). Sedang sesudah 15KHz dan sebelum 7KHz signal diredam (sekitar -120dB).

Output Flow Graph Python saya tampilkan di bawah. Script ini dibuat otomatis oleh GNU Radio.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
#
# SPDX-License-Identifier: GPL-3.0
#
# GNU Radio Python Flow Graph
# Title: Tes Filter
# GNU Radio version: 3.9.7.0

from distutils.version import StrictVersion

if __name__ == '__main__':
    import ctypes
    import sys
    if sys.platform.startswith('linux'):
        try:
            x11 = ctypes.cdll.LoadLibrary('libX11.so')
            x11.XInitThreads()
        except:
            print("Warning: failed to XInitThreads()")

from PyQt5 import Qt
from gnuradio import qtgui
from gnuradio.filter import firdes
import sip
from gnuradio import analog
from gnuradio import filter
from gnuradio import gr
from gnuradio.fft import window
import sys
import signal
from argparse import ArgumentParser
from gnuradio.eng_arg import eng_float, intx
from gnuradio import eng_notation
from gnuradio import qtgui

class LPF1(gr.top_block, Qt.QWidget):
    def __init__(self):
        gr.top_block.__init__(self, "Tes Filter", catch_exceptions=True)
        Qt.QWidget.__init__(self)
        self.setWindowTitle("Tes Filter")
        qtgui.util.check_set_qss()
        try:
            self.setWindowIcon(Qt.QIcon.fromTheme('gnuradio-grc'))
        except:
            pass
        self.top_scroll_layout = Qt.QVBoxLayout()
        self.setLayout(self.top_scroll_layout)
        self.top_scroll = Qt.QScrollArea()
        self.top_scroll.setFrameStyle(Qt.QFrame.NoFrame)
        self.top_scroll_layout.addWidget(self.top_scroll)
        self.top_scroll.setWidgetResizable(True)
        self.top_widget = Qt.QWidget()
        self.top_scroll.setWidget(self.top_widget)
        self.top_layout = Qt.QVBoxLayout(self.top_widget)
        self.top_grid_layout = Qt.QGridLayout()
        self.top_layout.addLayout(self.top_grid_layout)

        self.settings = Qt.QSettings("GNU Radio", "LPF1")
        try:
            if StrictVersion(Qt.qVersion()) < StrictVersion("5.0.0"):
                self.restoreGeometry(self.settings.value("geometry").toByteArray())
            else:
                self.restoreGeometry(self.settings.value("geometry"))
        except:
            pass
        ##################################################
        # Variables
        ##################################################
        self.samp_rate = samp_rate = 64e3
        ##################################################
        # Blocks
        ##################################################
        self.qtgui_freq_sink_x_0_0_1 = qtgui.freq_sink_c(
            1024, #size
            window.WIN_BLACKMAN_hARRIS, #wintype
            0, #fc
            samp_rate, #bw
            "", #name
            1,
            None # parent
        )
        self.qtgui_freq_sink_x_0_0_1.set_update_time(0.10)
        self.qtgui_freq_sink_x_0_0_1.set_y_axis(-140, 10)
        self.qtgui_freq_sink_x_0_0_1.set_y_label('Relative Gain', 'dB')
        self.qtgui_freq_sink_x_0_0_1.set_trigger_mode(qtgui.TRIG_MODE_FREE, 0.0, 0, "")
        self.qtgui_freq_sink_x_0_0_1.enable_autoscale(False)
        self.qtgui_freq_sink_x_0_0_1.enable_grid(False)
        self.qtgui_freq_sink_x_0_0_1.set_fft_average(1.0)
        self.qtgui_freq_sink_x_0_0_1.enable_axis_labels(True)
        self.qtgui_freq_sink_x_0_0_1.enable_control_panel(False)
        self.qtgui_freq_sink_x_0_0_1.set_fft_window_normalized(False)

        labels = ['', '', '', '', '',
            '', '', '', '', '']
        widths = [1, 1, 1, 1, 1,
            1, 1, 1, 1, 1]
        colors = ["blue", "red", "green", "black", "cyan",
            "magenta", "yellow", "dark red", "dark green", "dark blue"]
        alphas = [1.0, 1.0, 1.0, 1.0, 1.0,
            1.0, 1.0, 1.0, 1.0, 1.0]

        for i in range(1):
            if len(labels[i]) == 0:
                self.qtgui_freq_sink_x_0_0_1.set_line_label(i, "Data {0}".format(i))
            else:
                self.qtgui_freq_sink_x_0_0_1.set_line_label(i, labels[i])
            self.qtgui_freq_sink_x_0_0_1.set_line_width(i, widths[i])
            self.qtgui_freq_sink_x_0_0_1.set_line_color(i, colors[i])
            self.qtgui_freq_sink_x_0_0_1.set_line_alpha(i, alphas[i])

        self._qtgui_freq_sink_x_0_0_1_win = sip.wrapinstance(self.qtgui_freq_sink_x_0_0_1.qwidget(), Qt.QWidget)
        self.top_layout.addWidget(self._qtgui_freq_sink_x_0_0_1_win)
        self.qtgui_freq_sink_x_0_0_0 = qtgui.freq_sink_c(
            1024, #size
            window.WIN_BLACKMAN_hARRIS, #wintype
            0, #fc
            samp_rate, #bw
            "", #name
            1,
            None # parent
        )
        self.qtgui_freq_sink_x_0_0_0.set_update_time(0.10)
        self.qtgui_freq_sink_x_0_0_0.set_y_axis(-140, 10)
        self.qtgui_freq_sink_x_0_0_0.set_y_label('Relative Gain', 'dB')
        self.qtgui_freq_sink_x_0_0_0.set_trigger_mode(qtgui.TRIG_MODE_FREE, 0.0, 0, "")
        self.qtgui_freq_sink_x_0_0_0.enable_autoscale(False)
        self.qtgui_freq_sink_x_0_0_0.enable_grid(False)
        self.qtgui_freq_sink_x_0_0_0.set_fft_average(1.0)
        self.qtgui_freq_sink_x_0_0_0.enable_axis_labels(True)
        self.qtgui_freq_sink_x_0_0_0.enable_control_panel(False)
        self.qtgui_freq_sink_x_0_0_0.set_fft_window_normalized(False)

        labels = ['', '', '', '', '',
            '', '', '', '', '']
        widths = [1, 1, 1, 1, 1,
            1, 1, 1, 1, 1]
        colors = ["blue", "red", "green", "black", "cyan",
            "magenta", "yellow", "dark red", "dark green", "dark blue"]
        alphas = [1.0, 1.0, 1.0, 1.0, 1.0,
            1.0, 1.0, 1.0, 1.0, 1.0]

        for i in range(1):
            if len(labels[i]) == 0:
                self.qtgui_freq_sink_x_0_0_0.set_line_label(i, "Data {0}".format(i))
            else:
                self.qtgui_freq_sink_x_0_0_0.set_line_label(i, labels[i])
            self.qtgui_freq_sink_x_0_0_0.set_line_width(i, widths[i])
            self.qtgui_freq_sink_x_0_0_0.set_line_color(i, colors[i])
            self.qtgui_freq_sink_x_0_0_0.set_line_alpha(i, alphas[i])

        self._qtgui_freq_sink_x_0_0_0_win = sip.wrapinstance(self.qtgui_freq_sink_x_0_0_0.qwidget(), Qt.QWidget)
        self.top_layout.addWidget(self._qtgui_freq_sink_x_0_0_0_win)
        self.qtgui_freq_sink_x_0_0 = qtgui.freq_sink_c(
            1024, #size
            window.WIN_BLACKMAN_hARRIS, #wintype
            0, #fc
            samp_rate, #bw
            "", #name
            1,
            None # parent
        )
        self.qtgui_freq_sink_x_0_0.set_update_time(0.10)
        self.qtgui_freq_sink_x_0_0.set_y_axis(-140, 10)
        self.qtgui_freq_sink_x_0_0.set_y_label('Relative Gain', 'dB')
        self.qtgui_freq_sink_x_0_0.set_trigger_mode(qtgui.TRIG_MODE_FREE, 0.0, 0, "")
        self.qtgui_freq_sink_x_0_0.enable_autoscale(False)
        self.qtgui_freq_sink_x_0_0.enable_grid(False)
        self.qtgui_freq_sink_x_0_0.set_fft_average(1.0)
        self.qtgui_freq_sink_x_0_0.enable_axis_labels(True)
        self.qtgui_freq_sink_x_0_0.enable_control_panel(False)
        self.qtgui_freq_sink_x_0_0.set_fft_window_normalized(False)

        labels = ['', '', '', '', '',
            '', '', '', '', '']
        widths = [1, 1, 1, 1, 1,
            1, 1, 1, 1, 1]
        colors = ["blue", "red", "green", "black", "cyan",
            "magenta", "yellow", "dark red", "dark green", "dark blue"]
        alphas = [1.0, 1.0, 1.0, 1.0, 1.0,
            1.0, 1.0, 1.0, 1.0, 1.0]

        for i in range(1):
            if len(labels[i]) == 0:
                self.qtgui_freq_sink_x_0_0.set_line_label(i, "Data {0}".format(i))
            else:
                self.qtgui_freq_sink_x_0_0.set_line_label(i, labels[i])
            self.qtgui_freq_sink_x_0_0.set_line_width(i, widths[i])
            self.qtgui_freq_sink_x_0_0.set_line_color(i, colors[i])
            self.qtgui_freq_sink_x_0_0.set_line_alpha(i, alphas[i])

        self._qtgui_freq_sink_x_0_0_win = sip.wrapinstance(self.qtgui_freq_sink_x_0_0.qwidget(), Qt.QWidget)
        self.top_layout.addWidget(self._qtgui_freq_sink_x_0_0_win)
        self.qtgui_freq_sink_x_0 = qtgui.freq_sink_c(
            1024, #size
            window.WIN_BLACKMAN_hARRIS, #wintype
            0, #fc
            samp_rate, #bw
            "", #name
            1,
            None # parent
        )
        self.qtgui_freq_sink_x_0.set_update_time(0.10)
        self.qtgui_freq_sink_x_0.set_y_axis(-140, 10)
        self.qtgui_freq_sink_x_0.set_y_label('Relative Gain', 'dB')
        self.qtgui_freq_sink_x_0.set_trigger_mode(qtgui.TRIG_MODE_FREE, 0.0, 0, "")
        self.qtgui_freq_sink_x_0.enable_autoscale(False)
        self.qtgui_freq_sink_x_0.enable_grid(False)
        self.qtgui_freq_sink_x_0.set_fft_average(1.0)
        self.qtgui_freq_sink_x_0.enable_axis_labels(True)
        self.qtgui_freq_sink_x_0.enable_control_panel(False)
        self.qtgui_freq_sink_x_0.set_fft_window_normalized(False)

        labels = ['', '', '', '', '',
            '', '', '', '', '']
        widths = [1, 1, 1, 1, 1,
            1, 1, 1, 1, 1]
        colors = ["blue", "red", "green", "black", "cyan",
            "magenta", "yellow", "dark red", "dark green", "dark blue"]
        alphas = [1.0, 1.0, 1.0, 1.0, 1.0,
            1.0, 1.0, 1.0, 1.0, 1.0]

        for i in range(1):
            if len(labels[i]) == 0:
                self.qtgui_freq_sink_x_0.set_line_label(i, "Data {0}".format(i))
            else:
                self.qtgui_freq_sink_x_0.set_line_label(i, labels[i])
            self.qtgui_freq_sink_x_0.set_line_width(i, widths[i])
            self.qtgui_freq_sink_x_0.set_line_color(i, colors[i])
            self.qtgui_freq_sink_x_0.set_line_alpha(i, alphas[i])

        self._qtgui_freq_sink_x_0_win = sip.wrapinstance(self.qtgui_freq_sink_x_0.qwidget(), Qt.QWidget)
        self.top_layout.addWidget(self._qtgui_freq_sink_x_0_win)
        self.low_pass_filter_0 = filter.fir_filter_ccf(
            1,
            firdes.low_pass(
                1,
                samp_rate,
                7e3,
                1e2,
                window.WIN_HAMMING,
                6.76))
        self.high_pass_filter_0 = filter.fir_filter_ccf(
            1,
            firdes.high_pass(
                1,
                samp_rate,
                20e3,
                100,
                window.WIN_HAMMING,
                6.76))
        self.band_pass_filter_0 = filter.fir_filter_ccf(
            1,
            firdes.band_pass(
                1,
                samp_rate,
                7e3,
                15e3,
                100,
                window.WIN_HAMMING,
                6.76))
        self.analog_noise_source_x_0 = analog.noise_source_c(analog.GR_GAUSSIAN, 1, 0)

        ##################################################
        # Connections
        ##################################################
        self.connect((self.analog_noise_source_x_0, 0), (self.band_pass_filter_0, 0))
        self.connect((self.analog_noise_source_x_0, 0), (self.high_pass_filter_0, 0))
        self.connect((self.analog_noise_source_x_0, 0), (self.low_pass_filter_0, 0))
        self.connect((self.analog_noise_source_x_0, 0), (self.qtgui_freq_sink_x_0, 0))
        self.connect((self.band_pass_filter_0, 0), (self.qtgui_freq_sink_x_0_0_1, 0))
        self.connect((self.high_pass_filter_0, 0), (self.qtgui_freq_sink_x_0_0_0, 0))
        self.connect((self.low_pass_filter_0, 0), (self.qtgui_freq_sink_x_0_0, 0))

    def closeEvent(self, event):
        self.settings = Qt.QSettings("GNU Radio", "LPF1")
        self.settings.setValue("geometry", self.saveGeometry())
        self.stop()
        self.wait()

        event.accept()

    def get_samp_rate(self):
        return self.samp_rate

    def set_samp_rate(self, samp_rate):
        self.samp_rate = samp_rate
        self.band_pass_filter_0.set_taps(firdes.band_pass(1, self.samp_rate, 7e3, 15e3, 100, window.WIN_HAMMING, 6.76))
        self.high_pass_filter_0.set_taps(firdes.high_pass(1, self.samp_rate, 20e3, 100, window.WIN_HAMMING, 6.76))
        self.low_pass_filter_0.set_taps(firdes.low_pass(1, self.samp_rate, 7e3, 1e2, window.WIN_HAMMING, 6.76))
        self.qtgui_freq_sink_x_0.set_frequency_range(0, self.samp_rate)
        self.qtgui_freq_sink_x_0_0.set_frequency_range(0, self.samp_rate)
        self.qtgui_freq_sink_x_0_0_0.set_frequency_range(0, self.samp_rate)
        self.qtgui_freq_sink_x_0_0_1.set_frequency_range(0, self.samp_rate)

def main(top_block_cls=LPF1, options=None):

    if StrictVersion("4.5.0") <= StrictVersion(Qt.qVersion()) < StrictVersion("5.0.0"):
        style = gr.prefs().get_string('qtgui', 'style', 'raster')
        Qt.QApplication.setGraphicsSystem(style)
    qapp = Qt.QApplication(sys.argv)

    tb = top_block_cls()

    tb.start()

    tb.show()

    def sig_handler(sig=None, frame=None):
        tb.stop()
        tb.wait()

        Qt.QApplication.quit()

    signal.signal(signal.SIGINT, sig_handler)
    signal.signal(signal.SIGTERM, sig_handler)

    timer = Qt.QTimer()
    timer.start(500)
    timer.timeout.connect(lambda: None)
    qapp.exec_()
if __name__ == '__main__':
    main()
